Reach Stacker Description

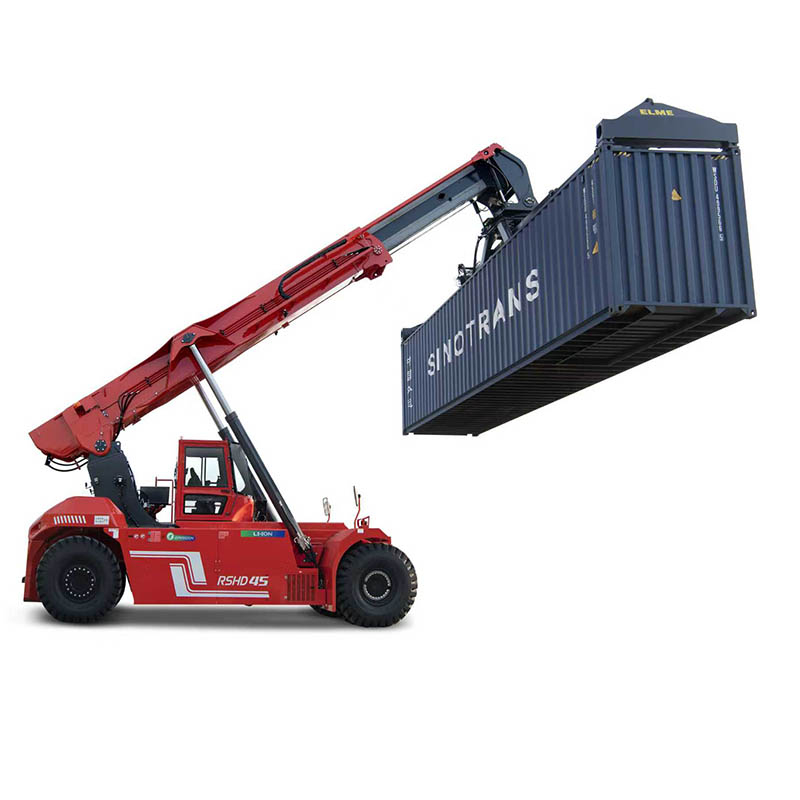

Noelift 45t electric reach stacker can be widely used in enterprises,stations,ports,docks,cabins etc., for oversized cargo handling and some types of empty container handling and stacking.
Container Truck Parameter
| parameter |
| Electric reach stacker |
1.1 | model |
| RSHD4527-A19LLiG2 | RSHD4531-A19LLiG2 |
1.2 | capacity (firstrow/second row/third row) | 吨 | 45000/27000/15000 | 45000/31000/15000 |
1.3 | Lifting containerspecifications | ft | 20/40/45 |
1.4 | Maximum liftingspeed(unload/load) | mm/s | 420/280 |
1.5 | Loweringspeed (unload/load) | mm/s | 360/360 |
1.6 | Maximum travellingspeed(unload/load) | Km/h | 21/19 |
1.7 | Maximumgradeability | % | 15 |
1.8 | overalllength(including accessories) | mm | 11300x4148x4754 |
1.9 | wheelbas | mm | 6000 |
1.10 | Wheel distance (front/rear) | mm | 3030/2838 |
1.11 |
spreader | model |
| EIME 817 INN |
1.12 1.13 |
| side shift | mm | +800~-800 |
|
| rotate | mm | -105~+195 |
1.14 | reach stacker weight | kg | 72000 | 73000 |
1.15 | battery type |
| LFP |
1.16 | battery capacity | kWh | 422.9 as standard、507 optional |
1.17 | Chargingtime(300KWcharger) | min | 90 |
