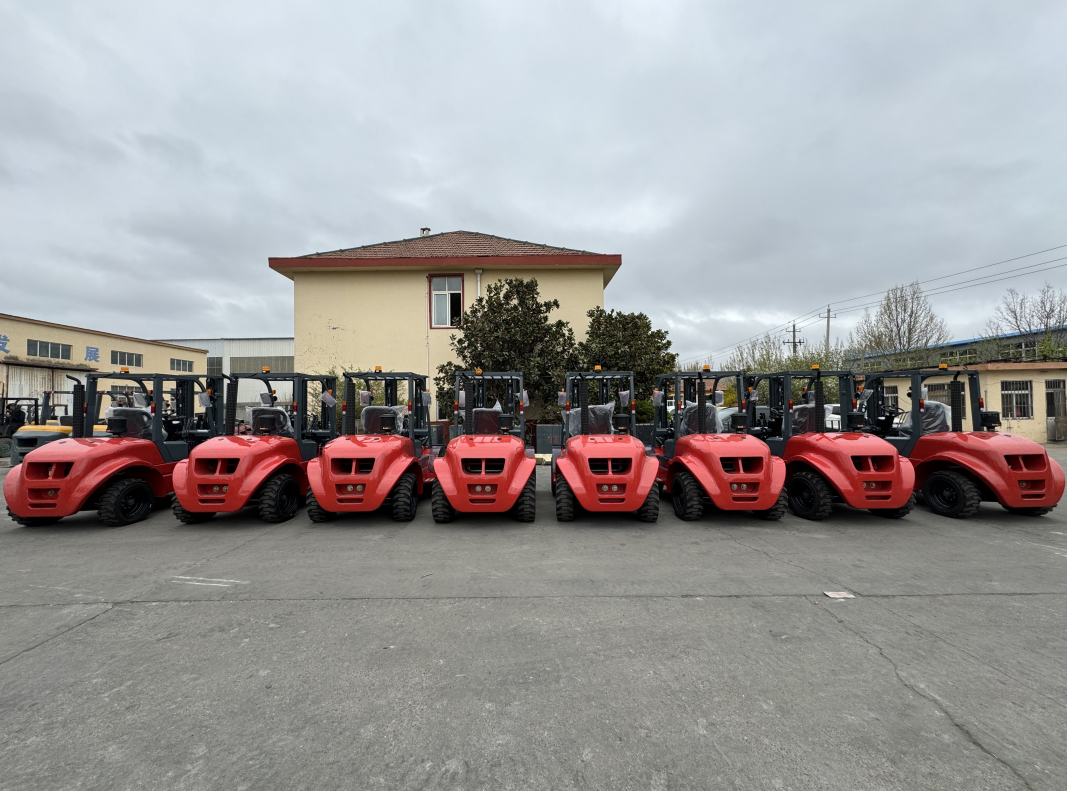

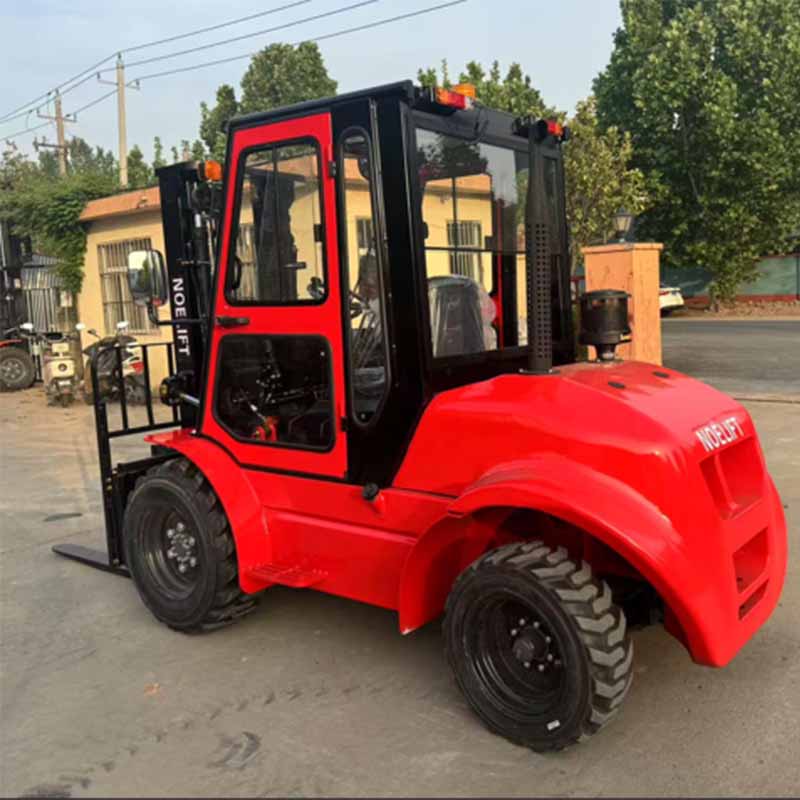

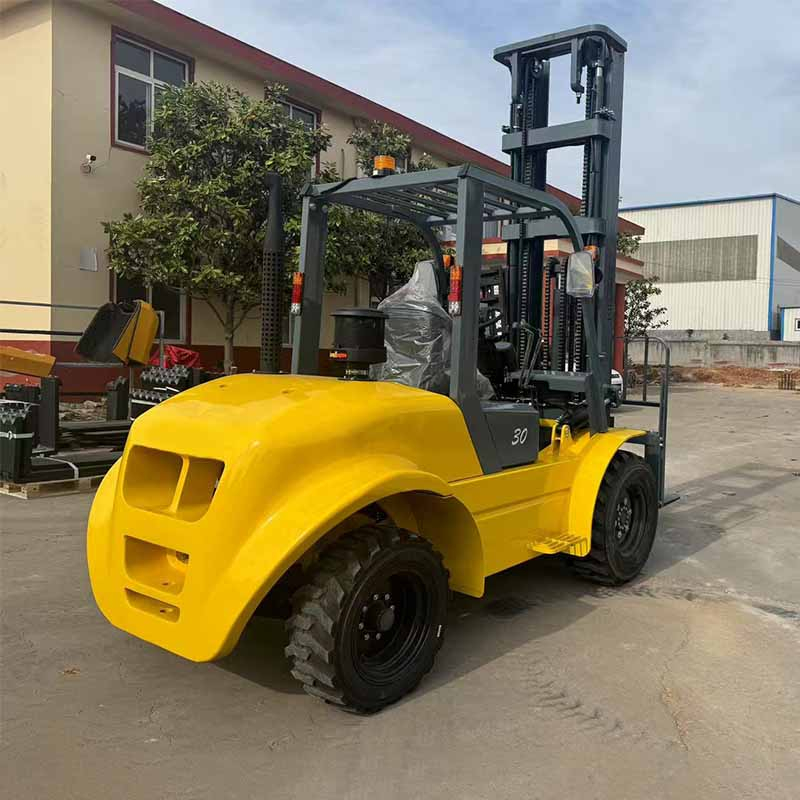

Rough Terrain Forklifts

Load capacity: 2.5tons--4tons

Applicable to complex terrains such as ports, storage yards, and construction sites


Availability:



Inquire

Product Description

Product Description

Rough terrain forklifts utilize large, widened, and deep-tread tires, which not only significantly enhance grip and shock absorption, but also effectively improve the vehicle's adaptability in a variety of harsh terrains, including mud, slopes, and slippery conditions. Furthermore, their ample ground clearance and all-wheel drive systems give these all-terrain forklift trucks exceptional maneuverability and obstacle-crossing capabilities, truly achieving "all-terrain" operational performance.

forklift Attachments

Products Parameters

MODEL					FD25-S	FD30-S	FD35-S	FD40-S
CHARACTERISTICS	POWER				DIESEL
	CAPACITY			kg	2500	3000	3500	4000
	LOAD CENTER			mm	500	500	500	500
	LFT HEIGHT		h	mm	3000	3000	3000	3000
	MAST TLT ANGLE	F/R		Deg	8/12	8/12	8/12	8/12
	MIN.TURNING		Wa	mm	2910	2910	2910	2960
	RADIUS		Wa	mm	2910	2910	2910	2960
	MIN.GROUND CLEARANCE	MAST		mm	250	250	250	250
		FRAME		mm	310	310	310	355
	OVERHEAD		h3	mm	2220	2220	2220	2265
	GUARD HEIGHT		h3	mm	2220	2220	2220	2265
	FRONT LOAD DISTANCE			mm	450	450	450	490
PERFORMANCE	TRAVEL SPEED	LOAD		km/h	22	22	22	22
	LFT SPEED	LOAD		mm/s	450	440	420	420
	MAX.	LOAD		%	16	16	16	16
	GRADEABILITY	LOAD		%	16	16	16	16
DEMENSION	TOTAL LENGTH	WITHOUT	L2	mm	2960	2960	2960	3000
DEMENSION	TOTAL LENGTH	FORK	L2	mm	2960	2960	2960	3000
	TOTALWIDTH		b	mm	1550	1550	1550	1650
	MAXHEIGHT		h4	mm	4350	4350	4350	4350
	MAST HEIGHT		h1	mm	2230	2230	2230	2300
CHASSIS	TYRE	FRONT			12-16.5-14PR	12-16.5-14PR	12-16.5-14PR	14-17.5-16PR
		REAR			27×10.5-15PR	27×10.5-15PR	27×10.5-15PR	10-16.5-12PR
	WHEELBASE		L3	mm	1850	1850	1850	1850
	WHEELTREAD	F/R		mm	1250/1205	1250/1205	1250/1205	1300/1205
	SERVICE WEIGHT	WITHOUT		Kg	4650	4800	4950	5200
	SERVICE WEIGHT	LOAD		Kg	4650	4800	4950	5200

MODEL					FD25-F	FD30-F	FD35-F	FD40-F
HARACTEISTICs	POWER				DIESEL
	CAPACITY			kg	2500	3000	3500	4000
	LOAD CENTER			mm	500	500	500	500
	LIFT HEIGHT		h	mm	3000	3000	3000	3000
	MIN.TURNING RADIUS		Wa	mm	3120	3120	3120	3120
PERFORMANCE	MAX.TRAVELING SPEED	LOAD		km/h	20	20	20	20
	MAXLIFTING SPEED	LOAD		mm/s	530	530	480	480
	MAX.GRADEABILITY	LOAD		%	30	30	30	30
DEMENSION		WITH FORK	L1+L2	mm	4135	4135	4135	4135
	TOTAL LENGTH	WITHOUT FORK	h1	mm	3065	3065	3065	3065
	TOTALWIDTH		b	mm	1450	1600	1600	1600
	MAXHEIGHT		h4	mm	4350	4350	4350	4350
	MAST HEIGHT		h1	mm	2235	2235	2235	2280
HASSIS		FRONT			14-17.5-14PR	14-17.5-14PR	14-17.5-14PR	14-17.5-14PR
	TYRE	REAR			10.0/75-15.3	10.0/75-15.3	10.0/75-15.3	10.0/75-15.3
	WHEELBASE		L3	mm	1880	1880	1880	1880
	SERVICE WEIGHT	WITHOUT		Kg	5050	5250	5545	5800
	SERVICE WEIGHT	LOAD		Kg	5050	5250	5545	5800

Fork Standard(mm)	W(mm)	T(mm)	L(mm)									Model
1070×122x40	122	40	770	920	*1070	1220	1370	1520	1670	1820	1970	2.5t
1070×125×45	125	45	770	920	*1070	1220	1370	1520	1670	1820	1970	3.0t
1070×125×45	125	45	770	920	*1070	1220	1370	1520	1670	1820	1970	3.5t

Certifications

Our Services

1. One-stop solutions offer

2. OEM services offer

3. 24 hours non stop service offer

4. Track the products for you once every two days, until you get the products.

5. During warranty, spare parts delivery within one week for free.

FAQ

Q1: Are you an electric forklift factory?

A1: Yes, we have been a professional manufacturer of electric forklifts for more than 15 years.

Q2: How about the delivery time?

A2: About 20-30 days based on different models. For some standard products, we may have stock and could deliver immediately.

Q3: Is a customized solution available?

A3: Yes, we can provide different customized solutions.

Q4: Can you provide OEM service?

A4: Yes.

Company Information

In order to provide our customers with logistics handling solutions ranging from 500kg to 100,000kg, Noelift can provide you with an electric pallet truck, pallet stacker, counterbalance stacker, reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counterbalance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, AGV, and other customized types of options. All Noelift products are extensively utilized in the food, pharmaceutical, chemical, home electrical appliance, wool cotton textile, tobacco, electronics, machinery, furniture, and many other industries because of product serialization and standardization.
