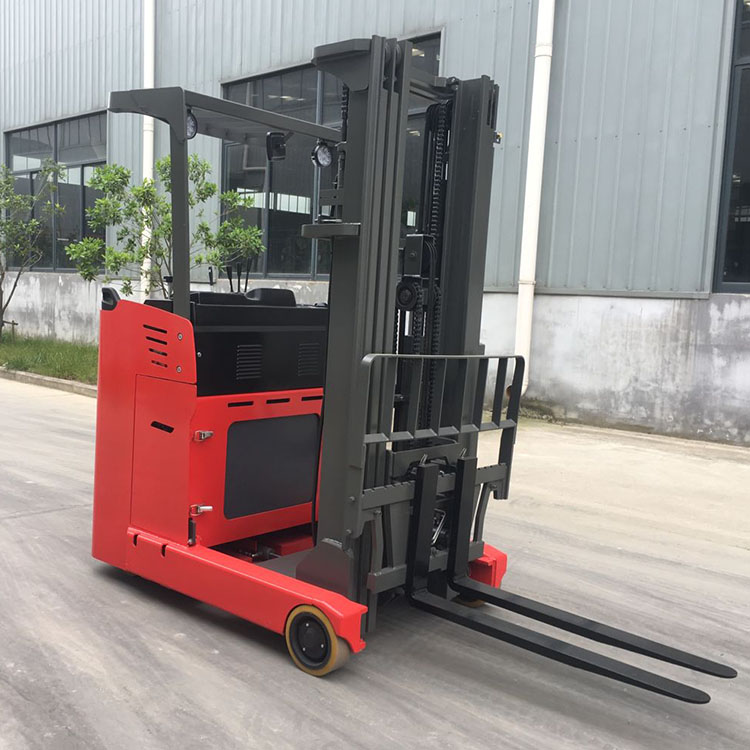

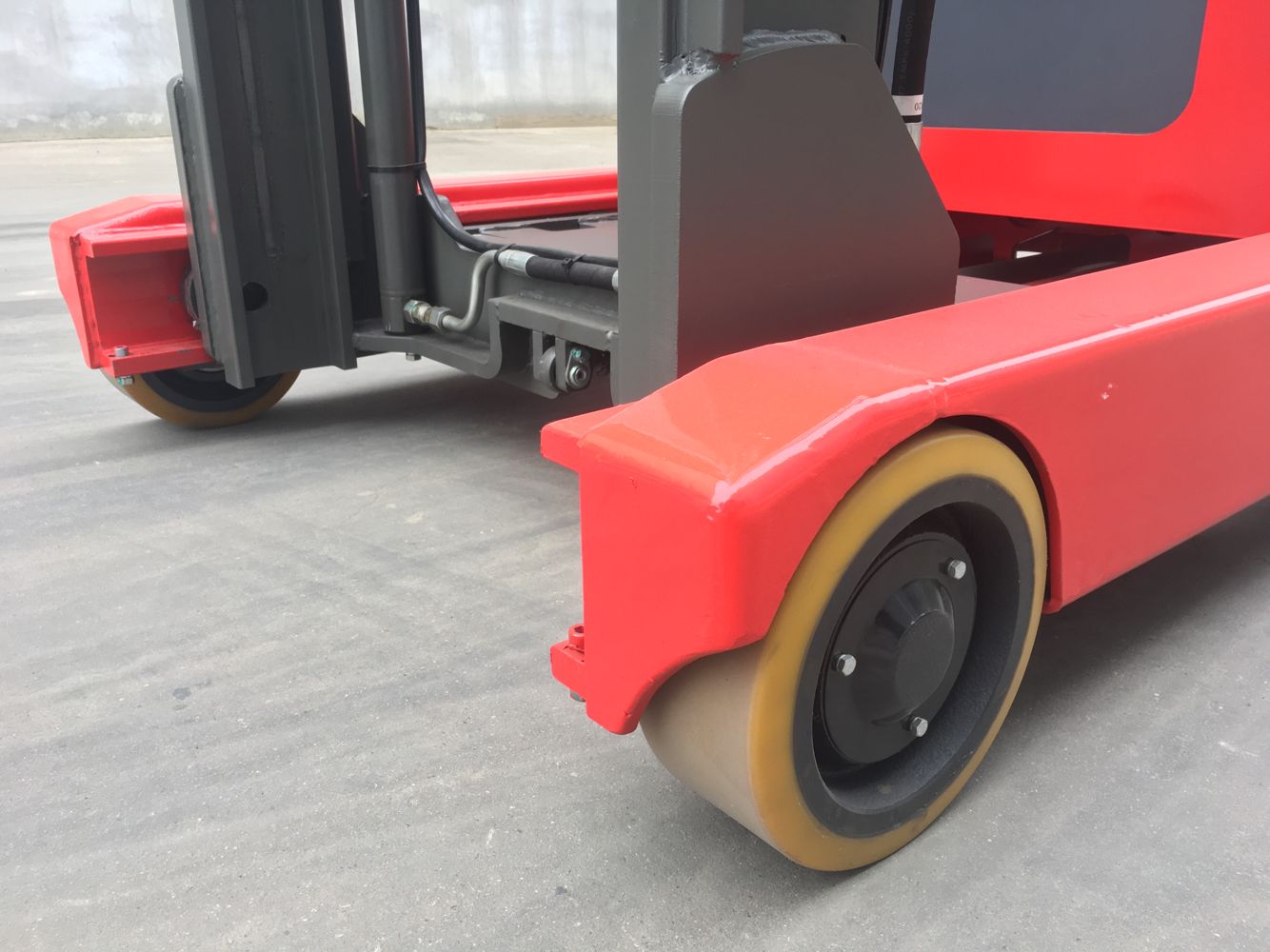

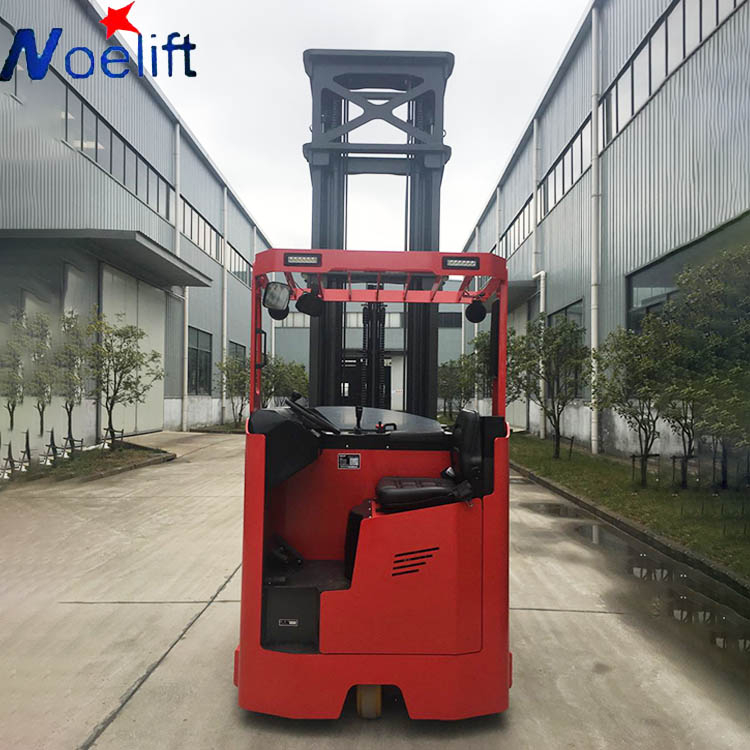

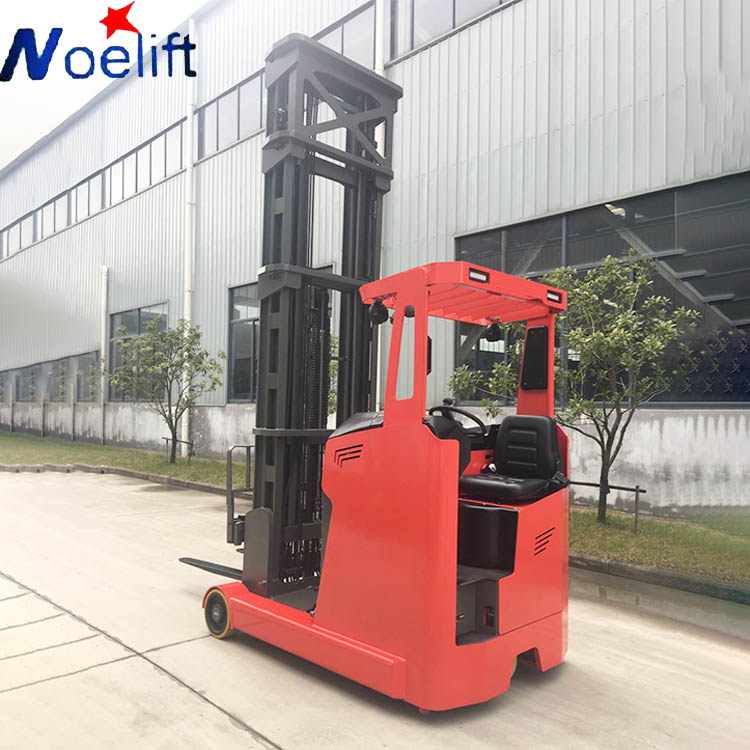

The noelift narrow aisle reach truck boasts exceptional lifting height, high load capacity, excellent visibility, and energy efficiency, making it ideal for warehouses with narrow aisles. This reach lift forklift features two outriggers to help distribute the load and a set of single wheels at the rear. This allows the operator to easily maneuver in and out of narrow aisles and reach greater heights while maintaining good lifting capacity.
| Standard 标准 | ||||
| 1.1 | Brand | NOELIFT | NOELIFT | |
| 1.2 | Model | TF12(Duplex mast) | TF12(Triplex full free mast) | |
| 1.3 | Power type | Battery 蓄电池 | Battery 蓄电池 | |
| 1.4 | Operation type | Stand on 站驾式 | Stand on 站驾式 | |
| 1.5 | Rated capacity | Q(kg) | 1200 | 1200 |
| 1.6 | Load center | C(mm) | 500 | 500 |
| 1.7 | Front overhang | x(mm) | 140 | 140 |
| 1.8 | Wheelbase | y(mm) | 1270 | 1270 |
| Weights 重量 | ||||
| 2.1 | Service weight(incl. battery) | kg | 2000 | 2250 |
| 2.2 | Axle capacity with no load,drive side/load size | kg | 1440/560 | 1550/700 |
| 2.3 | Axle capacity with full load(fork forward)drive side/load size | kg | 570/2630 | 580/2870 |
| 2.4 | Axle capacity with full load(fork backward)drive side/load size | kg | 1420/1780 | 1500/1950 |
| Wheels 车轮 | ||||
| 3.1 | Wheel type | PU | PU | |
| 3.2 | Front wheel | mm | Φ210×85 | Φ210×85 |
| 3.3 | Drive wheel | mm | Φ230×110 | Φ230×110 |
| 3.4 | Auxiliary wheel | mm | Φ180×76 | Φ180×76 |
| 3.5 | Number of wheels-front/rear (x=drive wheel) | 2/1 x+2 | 2/1 x+2 | |
| 3.6 | Wheel tread,drive side | b10(mm) | 615 | 615 |
| 3.7 | Wheel tread,load side | b11(mm) | 999 | 999 |
| Size 尺寸 | ||||
| 4.1 | Fork tilt | α/β(°) | 3/5 | 3/5 |
| 4.2 | Mast closed height | h1(mm) | 2080 | 2080 |
| 4.3 | Free Lift height | h2(mm) | / | 1480【1】 |
| 4.4 | Lift height | h3(mm) | 3000 | 4500 |
| 4.5 | Mast extended height with load-backrest | h4(mm) | 3960 | 5460 |
| 4.6 | Overhead guard height | h6(mm) | 2250 | 2250 |
| 4.7 | Pedal height | h7(mm) | 300 | 300 |
| 4.8 | Overall length | l1(mm) | 2078【2】 | 2106 |
| 4.9 | Overall width | b1/b2(mm) | 1090/1000 | 1090/1000 |
| 4.10 | Fork size | l/e/s(mm) | 1070/100/35 | 1070/100/35 |
| 4.11 | Fork carriage width | b3(mm) | 1088 | 1088 |
| 4.12 | Fork outside width | b5(mm) | 222-750【3】 | 222-750 |
| 4.13 | Inner leg width | b4(mm) | 822 | 822 |
| 4.14 | Reach stroke | l4(mm) | 600【2】 | 570 |
| 4.15 | Mast ground clearance | m1(mm) | 80 | 80 |
| 4.16 | Aisle width for pallet 1000*1200mm(C=500mm) | Ast(mm) | 2502【2】 | 2521 |
| 4.17 | Aisle width for pallet 800*1200mm(C=600mm) | Ast(mm) | 2537【2】 | 2561 |
| 4.18 | Turning radius | Wa(mm) | 1492 | 1492 |
| Function 性能 | ||||
| 5.1 | Driving speed(load/unload) | km/h | 7/8 | 7/8 |
| 5.2 | Lifting speed(load/unload) | mm/s | 150/190 | 130/190【4】 |
| 5.3 | Lowering speed(load/unload) | mm/s | 190/170 | 170/130【4】 |
| 5.4 | Max.gradeability(load/unload) | %(tanθ ) | ≤10 | ≤10 |
| 5.5 | Brake type | Mechanical | Mechanical | |
| Drive 驱动 | ||||
| 6.1 | Driving Motor(S2-60min) | kw | 2.3 | 2.3 |
| 6.2 | Lifting Motor(S3-15%) | kw | 3.5 | 3.5 |
| 6.3 | Battery voltage/capacity | V/Ah | 24/350 | 24/350 |
| 6.4 | Battery weight | kg | 300 | 300 |
| 6.5 | Steering system | EPS | EPS | |
| Others 其他 | ||||
| 7.1 | Battery replacement type | Side pull | Side pull | |
1. One-stop solutions offer
2. OEM services offer
3. 24 hours non stop service offer
4. Track the products for you once every two days, until you get the products.
5. During warranty, spare parts delivery within one week for free.
Asia: Vietnam, India, Indonesia, Malaysia, Philippines, brunei,Kazakhstan, Uzbekistan, etc.
Europe: Russia, Belgium, Spain, Portugal, Czech republic, Switzerland, Bulgaria etc.
South America: Brazil, Colombia, Peru, Chile, Paraguay, Argentina, etc.
Norhth America:The United States, Canada, Mexico, el Salvador, costa rica, panama ect.
Africa: Algeria, Egypt, Ethiopia, Senegal, South Africa, Rwanda ect.
We will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients.
1) For most Europe, South America and Africa etc. countries we can go by container or Roro through ocean freight.
2) For neighborhood countries of China, such as Russia, Vietnam, Kazakhstan, Uzbekistan etc. we can delivery by road or railway.
3) For light spare parts in urgent requirement, we can send it by international courier service, such as DHL, TNT, EMS or other air transportation.
Normally we can work on T/T or L/C.
1)On T/T term, 30% payment is required in advance for production, 70% balance shall be paid before delivery or against the copy of original B/L for old long cooperation clients.
2)On L/C term, 100% irrevocable L/C at sight.
As a professional experienced supplier, we can handle all INCOTERMS 2010 terms, and we normally work on FOB, CFR, CIF, DAP, FCA, EXW etc.
If clients need normal products, we will deliver the products within 20days. If clients need customerized products, the delivery date depend on the requirements
In order to provide our customers with logistics handling solutions ranging from 500kg to 100,000kg, Noelift can provide you with an electric pallet truck, pallet stacker, counterbalance stacker, reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counterbalance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, AGV, and other customized types of options. All Noelift products are extensively utilized in the food, pharmaceutical, chemical, home electrical appliance, wool cotton textile, tobacco, electronics, machinery, furniture, and many other industries because of product serialization and standardization.
